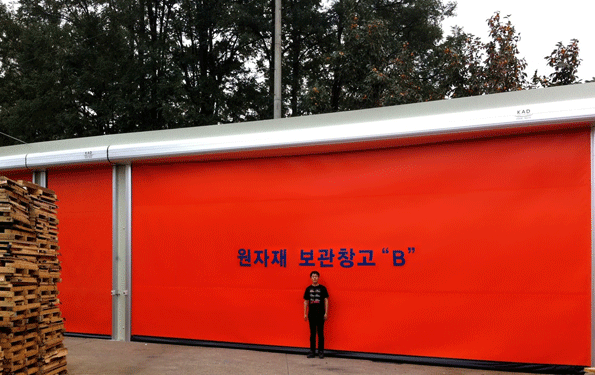

Big Door

The big door is the automatic door which can be manufactured and installed up to the maximum width of 12M, and can be stably operated regardless of weight and size of speed door by applying a controller for a speed door. The big door is suitable for the site such as a factory, a distribution center, raw material warehouse and the like having a large-size gate.

Product Specification

Division Specification Remarks
DOOR SIZE Minimum (WxH)6mx6m, maximum (WxH)12mx7m -
Maximum opening/closing speed 1m⁄sec~3m⁄sec -
Temperature range -15°C~+70°C -
Numbers of operating guarantee 2,000,000~5,000,000 or more -
Noise 15~20dB -
MOTOR power 3-phase, 220V, 0.4~1.5KW, 60HZ(optional) -
Control power Single phase AC220V, 60HZ -
